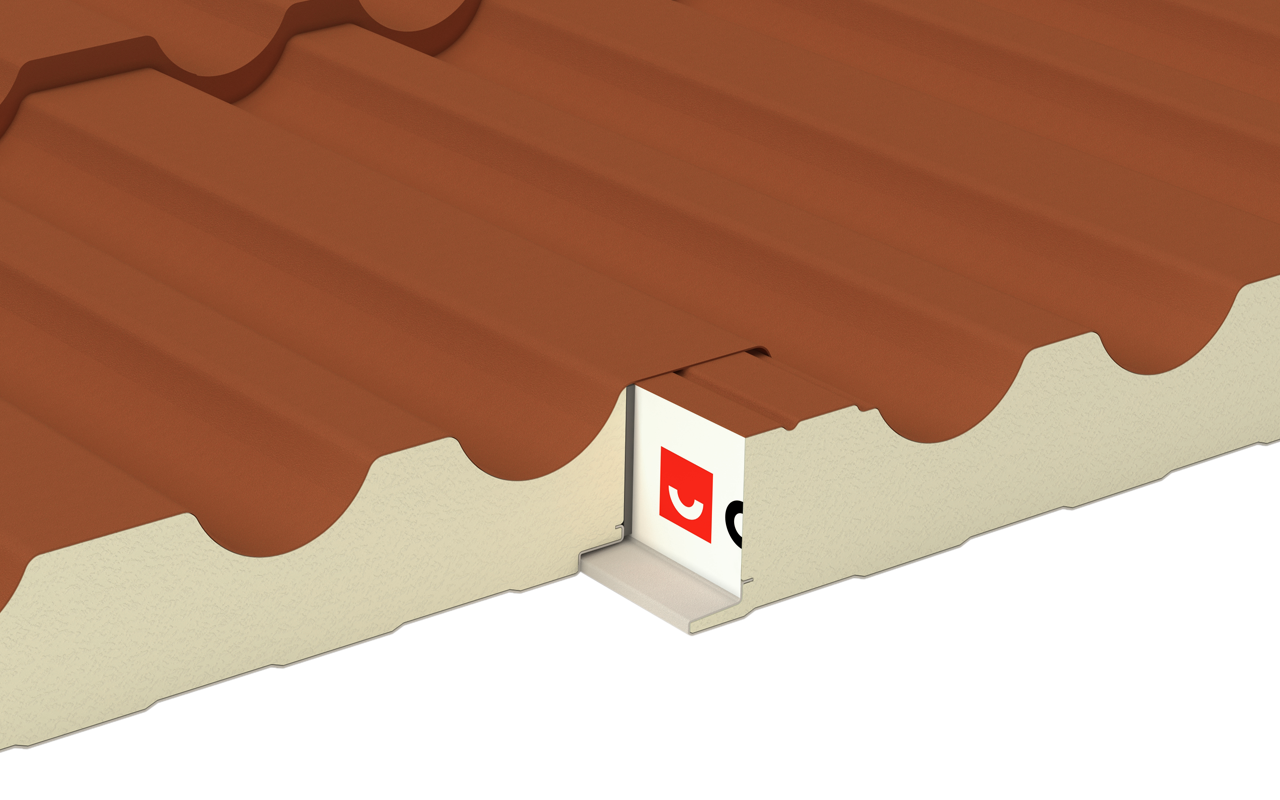

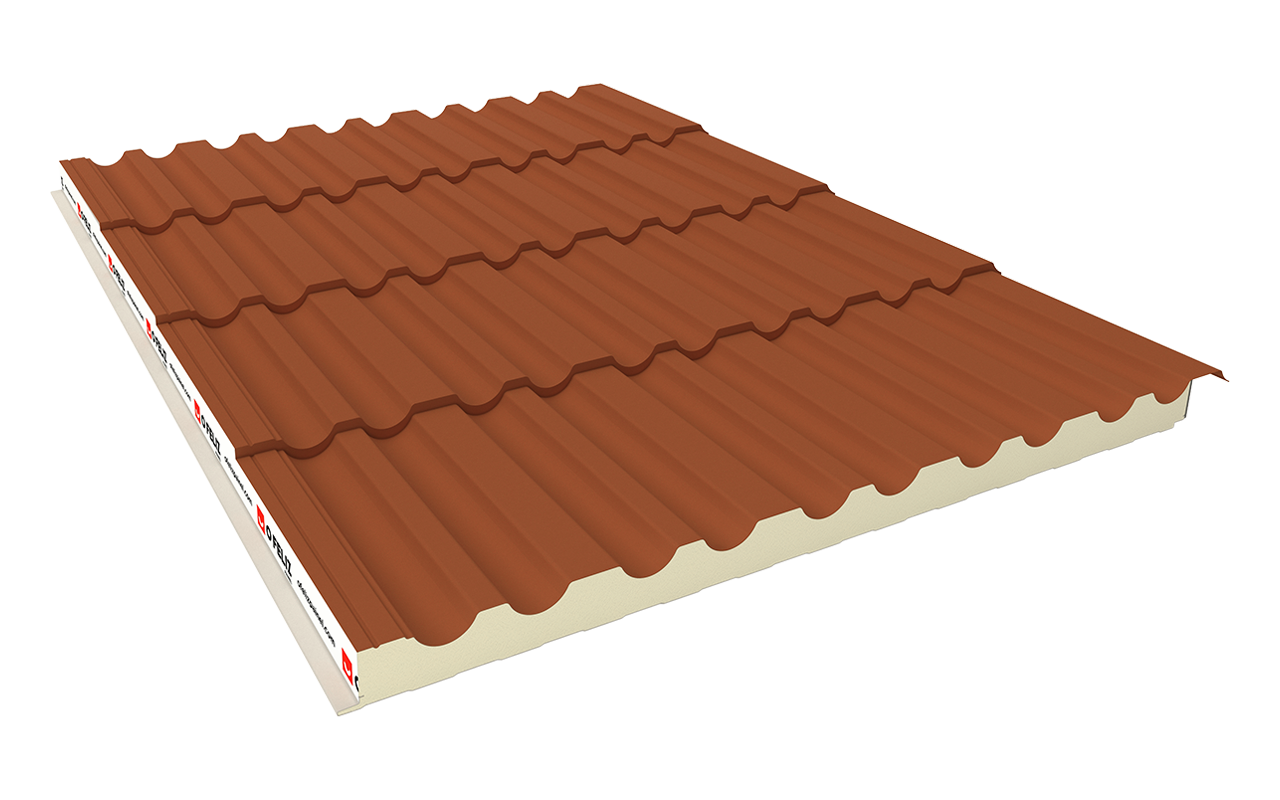

Panel with the shape of a traditional tile for roofs with a minimum slope of 10%.
Insulating product composed of two profiled metal sheets, joined by an insulating core made of rigid polyurethane (PUR) or polyisocyanurate (PIR) foam.
The exterior panel has a textured paint finish for a greater resemblance to traditional tiles.
In harsher environments, it is recommended to apply silicone to the panel joint to prevent condensation.
Dimensions*
Thicknesses: 40–60–80 mm ±2 mm
Width: 1000 mm ±2 mm
Length: 2,10 — 14,00 m, in multiples of 0,35 m
Maximum recommended length: 8,05 m
Metallic support
Steel grade S250GD: EN 10346
Thicknesses: 0,4–0,5–0,6 mm
