Facewall® Tek 600

Facades and Walls

Description/Application

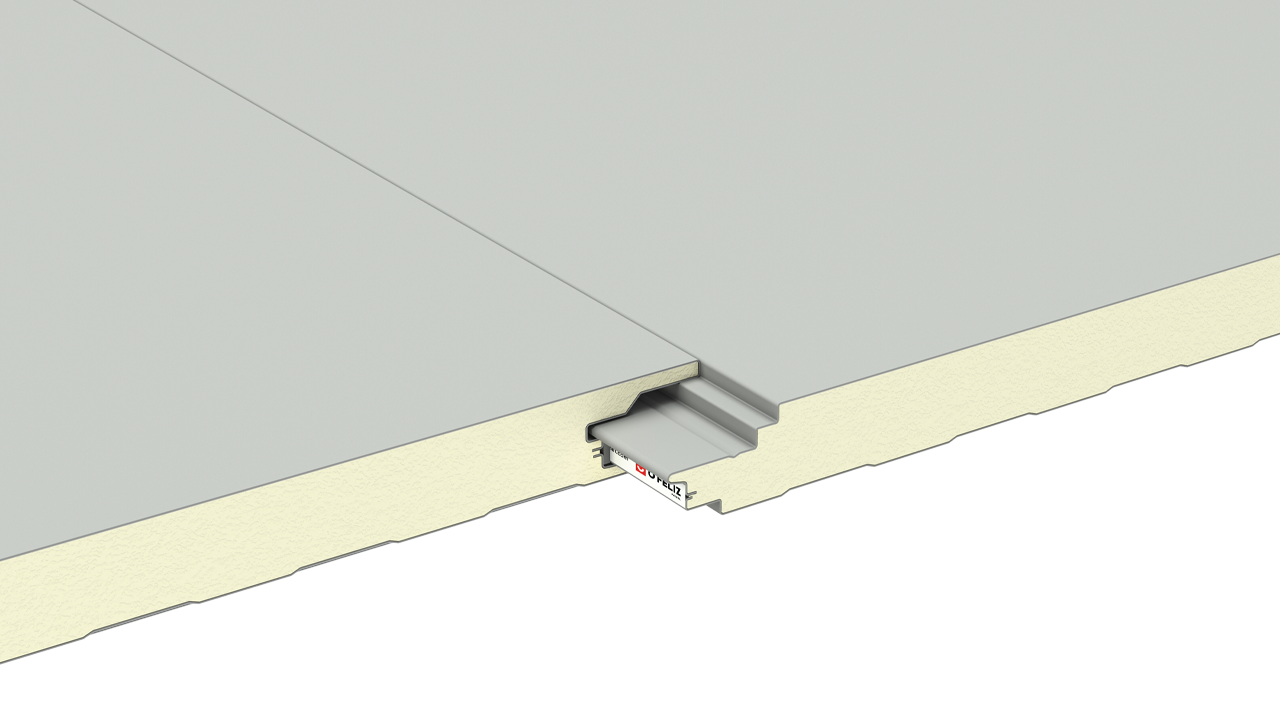

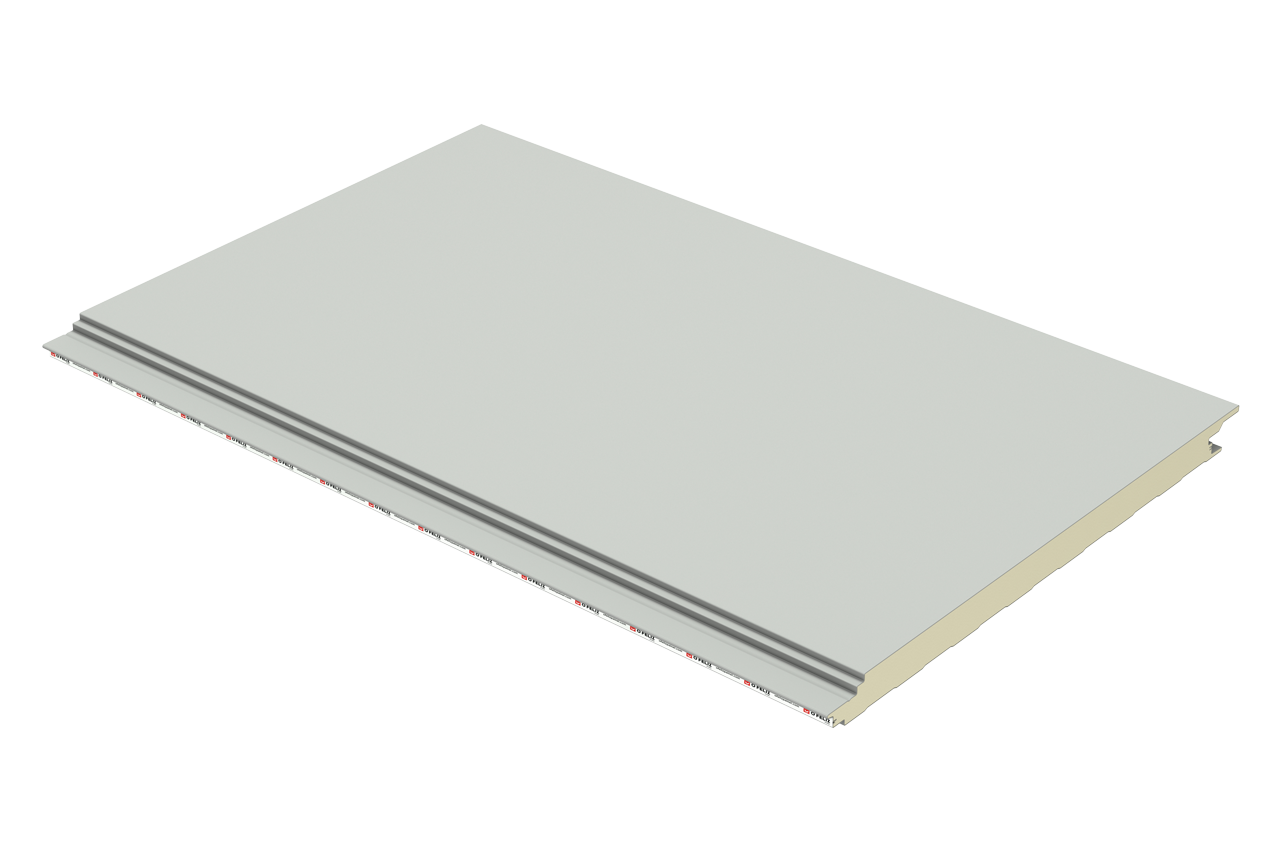

Insulated panel composed of two profiled metal sheets joined by rigid Polyurethane (PUR) or Polyisocyanurate (PIR) foam. Facade panel with secret fix. Ribbed, micro-profiled or flat faced panels available.
Panel produced according to EN 14509 and subject to evaluation and verification of regularity of performance according to system 1.

Dimensions*

Thicknesses: 40–60 mm ±2 mm
Width: 600 mm ±2 mm
Length: 4,00 — 14,00 m ±10 mm
Maximum recommended length: 8,00 m

Metallic Support

Steel grade S250GD: EN 10346
Organic coating lacquered coils: EN 10169+A1
Thicknesses: 0,5–0,6 mm

Insulated Core

Polyurethane (PUR) | Polyisocyanurate (PIR)
Thermal conductivity:

PUR 0,0207 W/m °C
PIR 0,0207 W/m °C

Density: 40 kg/m³
Reaction to fire:

PUR B s2 d0
PIR B s2 d0
PIR-HI B s1 d0
Coating

Standard: Polyester paint 25 µm
Specials: Granite HDX 55 µm | PVDF 35 µm

*Tolerances according to EN 14509
W/m K = W/m °C | W/m² K = W/m² °C
