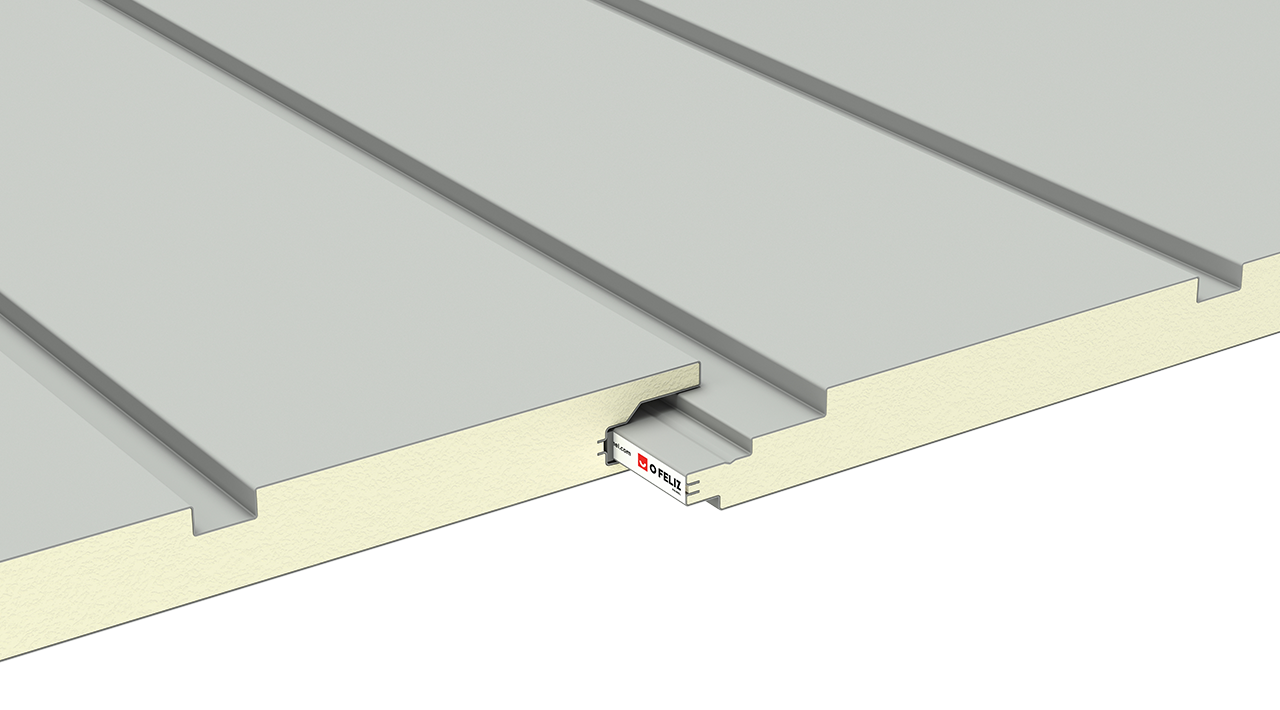

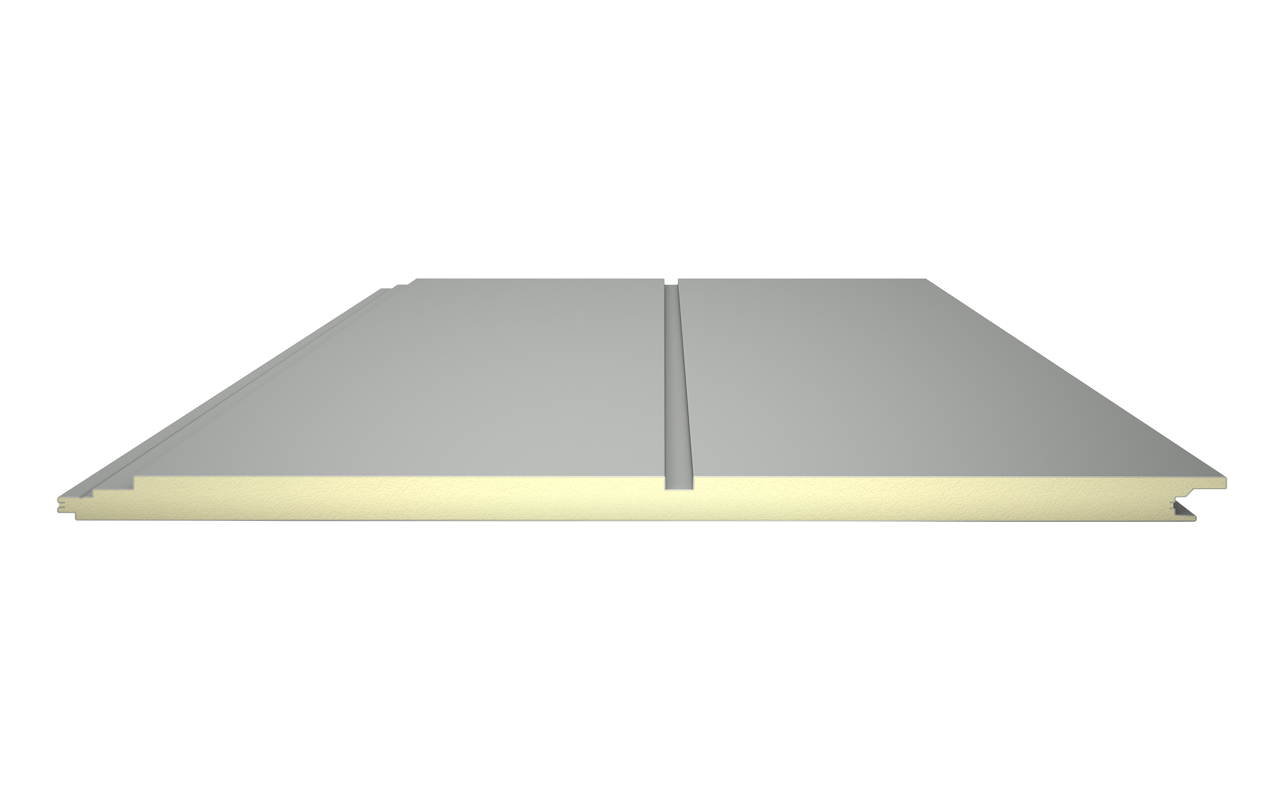

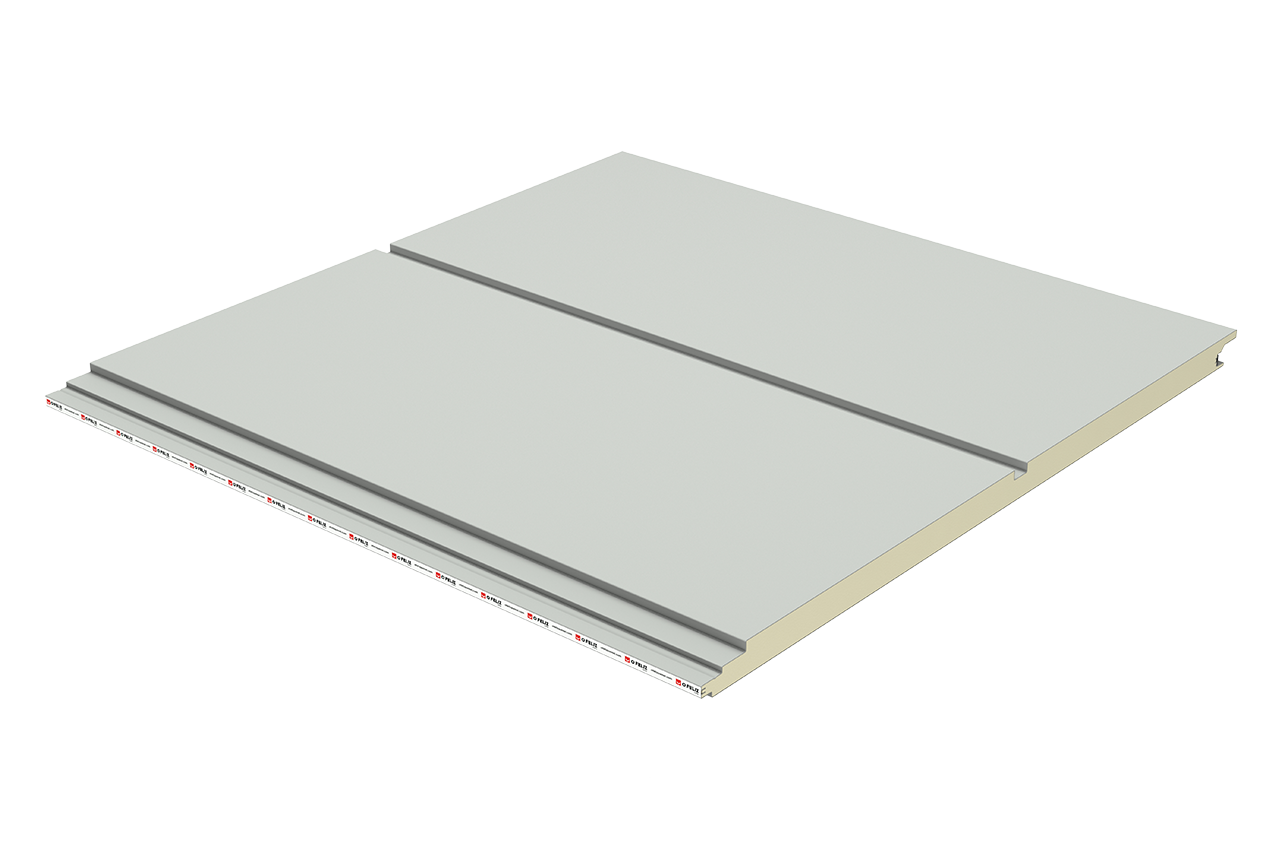

Insulating panel made up of two profiled metal sheets, joined by a core of rigid polyurethane (PUR) or polysocyanurate (PIR) foam. Facade panel with hidden fixing, available with flat exterior surface and open or closed joint.
Product manufactured in accordance with the EN 14509 standard and subject to evaluation and verification of the regularity of performance according to system 1.
Dimensions*
Thicknesses: 40–60 mm ±2 mm
Width: 1000 — 1080 m mm ±2 mm
Length: 4,00 — 14,00 m ±10 mm
Maximum recommended length: 8,00 m
Metallic support
Steel grade S250GD: EN 10346 Organic coating lacquered coils: EN 10169+A1 Thicknesses: 0,5–0,6 mm
